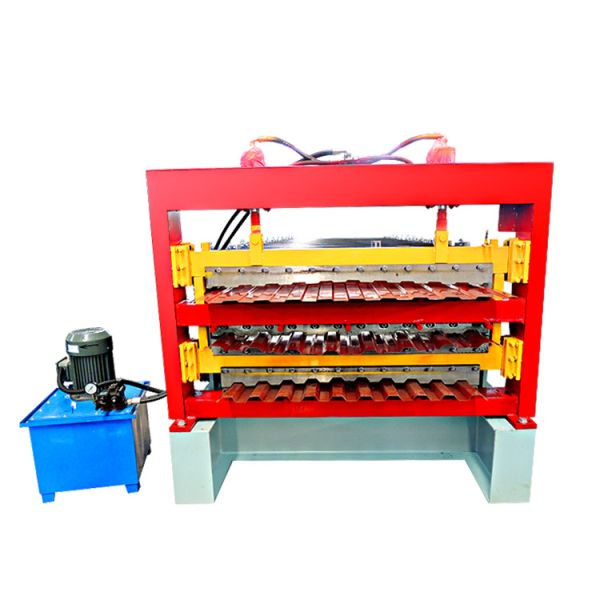

    Buy cheap Colored Steel Wall Roof Roll Forming Machine Galvanized Aluminum Corrugated Steel Sheet Making Machine from wholesalers

    Buy cheap Colored Steel Wall Roof Roll Forming Machine Galvanized Aluminum Corrugated Steel Sheet Making Machine from wholesalers
    • Buy cheap Colored Steel Wall Roof Roll Forming Machine Galvanized Aluminum Corrugated Steel Sheet Making Machine from wholesalers
    • Buy cheap Colored Steel Wall Roof Roll Forming Machine Galvanized Aluminum Corrugated Steel Sheet Making Machine from wholesalers

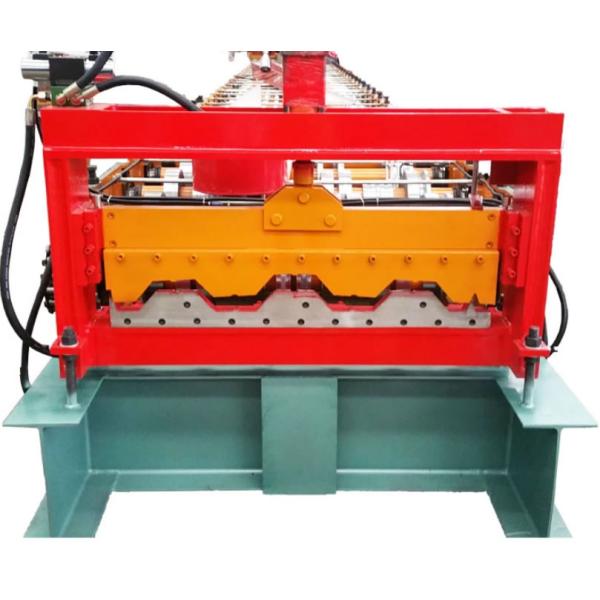

    Colored Steel Wall Roof Roll Forming Machine Galvanized Aluminum Corrugated Steel Sheet Making Machine

    Ask Lasest Price
    Model Number : Roof panel roll forming machine
    Certification : ISO
    Payment Terms : D/A, D/P, Western Union, MoneyGram
    Supply Ability : 100 sets / month
    Delivery Time : 10-15 working days
    Brand Name : WADJAY
    • Product Details
    • Company Profile

    Colored Steel Wall Roof Roll Forming Machine Galvanized Aluminum Corrugated Steel Sheet Making Machine

    Colored Steel Wall Roof Roll Forming Machine Galvanized Aluminum Corrugated Steel Sheet Making Machine

    Product Description

    Product advantages

    The lap edge is smooth and convenient for the two boards to buckle up for construction
    High speed can reach to 20M/MIN
    make sure a good strength and good concrete adherance
    Machine description Quantity Delivery time Container type
    metal roofing galvanized aluminum corrugated steel sheet making machine

    1SET

    45 working days after receiving deposit

    One 20GP

    Colored Steel Wall Roof Roll Forming Machine Galvanized Aluminum Corrugated Steel Sheet Making Machine

    Components of corrugated iron sheet machinery

    No. Name Unit Qty
    1 Manual decoiler set 1
    2 Main forming machine set 1
    3 PLC control system Set 1
    4 Hydraulic pump station set 1
    5 post cut set 1
    6 electric motor set 1
    7 output table set 1

    corrugated iron sheet machinery production process

    Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

    Colored Steel Wall Roof Roll Forming Machine Galvanized Aluminum Corrugated Steel Sheet Making Machine

    Details of corrugated iron sheet machinery

    Colored Steel Wall Roof Roll Forming Machine Galvanized Aluminum Corrugated Steel Sheet Making Machine

    Colored Steel Wall Roof Roll Forming Machine Galvanized Aluminum Corrugated Steel Sheet Making Machine

    parameters
    NO. Items parameters Remark
    1 Suitable Material type GI/PPGI/AL
    Width 1200mm Custom
    Thickness 0.3-1mm
    Product specifications length any length
    length tolerance ± 2mm
    3 Working Speed 8m-25m/min Standard machine
    4 Control System PLC Custom
    5 Total Power 5.5-11 KW
    6 Total Weight About 5-7.5 T Up to final design

    Product Parameters
    Floor deck roll forming machine profile drawings
    Raw material
    material spec
    GI,GL
    Thickness of coil sheet
    0.8 to 1.2 mm
    Machine details
    Roller material
    l Forming rollers adopt GCR15 steel,with quenching.HRC:58°
    Shaft material
    Shafts of forming adopt 45# steel,after balance correction,are grinded,polished with high precision.
    Stainless steel dust shield is mounted on the outside of the bearings.
    Diameter of shaft
    90mm
    Main frame
    400 H steel
    Forming steps
    26 rows
    Productivity
    20-22m/min
    Hydraulic station power
    22 KW Hydraulic motor driving.
    Middle panel
    20mm
    Controlling system
    Electrical control system :Taiwan delta brand
    Circuit breaker, limit switch: French schneider
    The relay USES non-contact solid state relay: normally contact 50 million times
    Material of cutting table
    Cr 12 mould steel with quenched treatment
    Appearance size
    12000mm*1500mm*1510mm
    Hydraulic oil
    40# hydraulic oil
    Electric tension
    440V 50 Hz 3 Phase or as your requirements
