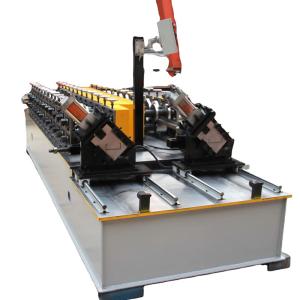

Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles

Voltage:as the clients requirement
Certification:CE ISO BV
Warranty:3 years
Core Components:Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, PLC
color:Any color
control system:PLC

1.The chart of process flow:
Decoiling--active feeding---forming---measuring lengh---punching---cutting---product to stand

2.Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

3.Technical parameters
1)Profile
thickness:0.3--0.8mm or 1--2mm
2)inner tight decoiler
A.coil inner diameter:350mm--450mm
B.max width of coiling:400mm
C.max weight of loading:5000kg

3)main forming machine
A.Shaft material:45# steel,bearing steel outer diameter 85mm
B.Main motor power:5.5kw
C.Forming speed:25m/min
D.Voltage:380v,50hz
E.Roller station:15

4)cutting system

A.hydraulic cutter

B.Blade and mould material:Cr12 steel with quenched treated 60-62°

C.Cutting system advanced hydraulic drive,after automatic cutting after forming.no

5)control system

A.PLC: taida form Taiwan

B.Coder:from south korea

6)hydraulic system

A.advanced hydraulic system
B.Power:3kw

Steel Double C and U shape Roll Making Line Light Steel Stud Frame Form Machine to Make Drywall Profiles

Henan Wadjay Machinery Co., Ltd.focuses on one-stop service solutions for Metal processing machinery. The factory covers
an area of 8,300 square meters and has 252 employees, including 29 senior engineers and 56 technical personnel. There are total 2 big workshops of Metal processing machinery .Main products: CNC machine tools, tapping machine, CNC lathe, CNC milling machine, boring milling machine, hobbing machine, drilling milling machine,slotting machine, Gear Shaper Planer,Roofing roll formers etc.

The company has its own professionalR&D center and design team, responsible for equipment drawing andcontinuous innovation to break through technical difficulties, research and development of new equipment; independent finishing department and electronic department are responsible for equipment aluminum and steel structure hardware processing and ultrasonic electronic device development and power distribution; assembly department assembly line assembly equipment. Wadley Machinery has always adhered to technological innovation as its leading force, and its
R&D team has continuously overcome technical bottlenecks. The technical content of some of its main equipment is far away in the industry.

The Metal processing machinery has fast processing efficiency and high precision. It has obtained ISO9001 and international CE certification, and has been exported to all parts of the world. Among them, Asia includes Japan, South Korea, Singapore, Malaysia, Indonesia, Thailand, Vietnam, Laos, Philippines, Cambodia, Myanmar; Europe includes Sweden, Norway, Iceland, Denmark, Lithuania, Russia, Ukraine, Poland, Austria, Ireland,Netherlands, Belgium, Romania, Spain, Portugal, Andorra,Italy; Africa includes Sudan, Algeria, Kenya, Zimbabwe, South Africa ,Mauritania; The America include Argentina, the United States, Bolivia, Canada,Colombia, Chile, Cuba, Venezuela, El Salvador, Ecuador, Jamaica, Mexico, andPeru.

We always provide customers with comprehensive production planning schemes, as well as comprehensive pre-sales technical guidance and after-sales technical support services for free; provide customers with high-quality products, reasonable prices, fast delivery and enthusiastic services to win the market.

We solemnly promise: All machinery and equipment are guaranteed for one year and life time maintenance. Provide free technical consultation and other related maintenance services. The company can arrange professional engineers and technical personnel to guide the installation and commissioning in the user’s site.

Welcome friends from all over the world to visit , and sincerely looking forward to cooperate with you!
