Aluminum Metal Steel Door Frame Roll Forming making Machine Door Frame Making Machine

    Buy cheap Aluminum Metal Steel Door Frame Roll Forming making Machine Door Frame Making Machine from wholesalers

    Buy cheap Aluminum Metal Steel Door Frame Roll Forming making Machine Door Frame Making Machine from wholesalers
    • Buy cheap Aluminum Metal Steel Door Frame Roll Forming making Machine Door Frame Making Machine from wholesalers
    • Buy cheap Aluminum Metal Steel Door Frame Roll Forming making Machine Door Frame Making Machine from wholesalers
    • Buy cheap Aluminum Metal Steel Door Frame Roll Forming making Machine Door Frame Making Machine from wholesalers

    Aluminum Metal Steel Door Frame Roll Forming making Machine Door Frame Making Machine

    Ask Lasest Price
    Brand Name : WADJAY
    Model Number : Door Frame Making Machine
    Certification : CE,ISO 9001
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 10 sets / month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

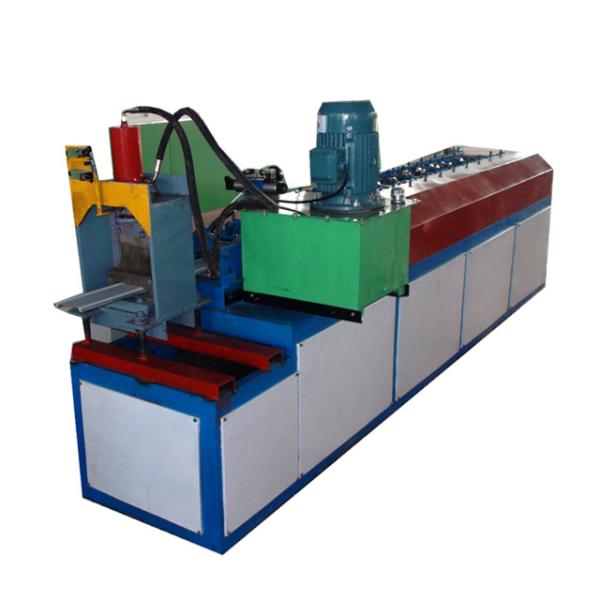

    Aluminum Metal Steel Door Frame Roll Forming making Machine Door Frame Making Machine


    Product Description

    he Door Frame Metal production line includes manual decoiler,feeding device,leveling device,puchiing device,incising device,main roll forming machine,pressing device,hydraulic cutter,automatic ,hydraulic station and PLC control system.

    Suitable materialPPGI/Aluminium sheet/galvanized sheet/various sheet plates
    Thickness of coil sheet0.2-0.8mm
    Coil width100mm
    Cover width80m
    Material of main frame300H steel
    Diameter of Soild shaft45mm, high grade 45# steel
    RollerQuenched and tempered treatment,
    hard chrome coated 0.05-0.07mm
    Thickness of middle plate16mm
    Forming station16stations
    Drive typeBy chain(1.0 inch) link bearing model 6210
    Power of main motor5.5kw with Cycloidal reducer
    Power of pump station4kw
    Forming speedAbout 8-10m/min
    Hydraulic cuttingControlled by PLC
    PLCDELTA(TAIWAN)/Mitsubishi
    Material of razor bladesCr 12, quenching 58-62℃
    Frequency converterIt has the advantage of slowing down before cutting, to ensure the
    length accuracy(±1mm, far better than industrial standard ±3mm).
    SwitchCHNT

    MATERIAL:
    (1) Steel thickness: 0.5mm~2.0mm
    (2) Coil width: about 130mm~220mm
    (3) Raw material: galvanized steel
    (4) Yield strength: about 235Mpa
    (5) Forming station: about 12 station
    (6) Rollers material: GCr15,
    (7) Line speed: about 15m/min.
    (8) Power supply: 380V/50HZ
    (9) Motor power: 7.5kw
    (10) Hydraulic pressure: 16 Mpa
    Production Process:
    Un-coil----roll forming----saw cutting----outlet finished product
    Production line components:
    (1) 3 Tons Hydraulic Un-coiler 1 set
    (2) Roll-Forming M/C 1 set
    (3) Saw cutter 1 set
    (4) Product Rack (un-powered) 1 set
    (5) PLC Control System 1 set
    Line speed:10 m/min.
