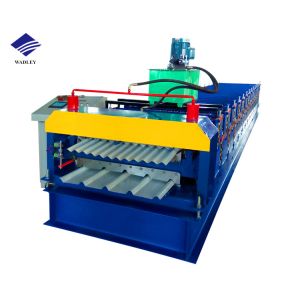

Double Layer Roof Wall Panel Roll Forming Machine

Ask Lasest Price
Brand Name :	WADJAY
Model Number :	Tile Forming Machine
Certification :	CE,ISO 9001
Payment Terms :	Western Union, T/T, D/P, D/A
Supply Ability :	100 sets / month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Double Layer Roof Wall Panel Roll Forming Machine

Product Description

Roll forming machine is composed of unwinding, forming, and post-forming cutting. The color panels produced by the production of flat and beautiful appearance, uniform paint pattern, high strength, and durability are widely used in industrial and civil buildings, such as workshops, warehouses, gymnasiums, exhibition halls, theaters, etc. Faces and walls

Detailed Images

roll forming machine specs

1. Dimensions: length 6000mm × width 1400mm × height 1300mm
2. Maximum speed of molding machine: 15 meters per minute
3. Forming color steel plate thickness: 0.2-0.8mm
4. Roller shaft diameter: 70mm
5. CNC computer operation panel
6. The unit includes: forming machine, hydraulic station, discharging rack, forming shears and control box.
7. Machine weight: about 3.0 tons,
8. Transmission mode: 1 inch chain drive
9. Forming row number: 4 peak tile type 13 row 5 peak tile type 11 row
10. Power host: 3kw
11. Pump station motor: 3kw
12. Distribution: The whole machine is controlled by industrial computer PLC;
13. Equipment chassis: 300H steel; vertical plate thickness is 14mm
14. Maximum error: Since the device is fully computer controlled, the maximum length error is ±1mm;

Roll forming machine production line:

Material feeder→Molding core→Hydraulic system→Automatic control system→Automatic shearing maechanism→Roll forming receiving tables

Roll forming machine different angle pictures

it main 2 parts, body&feeding part

body including rollers, shaft ectss..,

Roll forming mahcine more details

PLC: easy to opearte, for the lanuage can be customzied. Of course, PLC brand can also install it according to your requests
feeding
roller: 45#, can be OEM
hydraulic cutting prorect your coil good when cutting
travel switch control coil length, the length can adjust according to people' requests

If you want to do many different panell, we can customzied for you, 2 layer, 3 layer, 4 laeys ectss

save your factory spaces

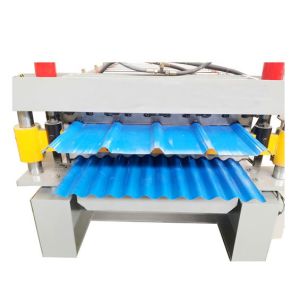

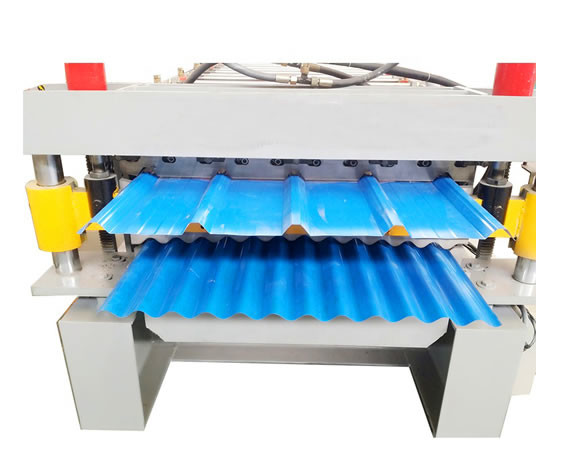

double layer
three layer

Roll forming more pictures:

all can be customzied, just send you panel layout
